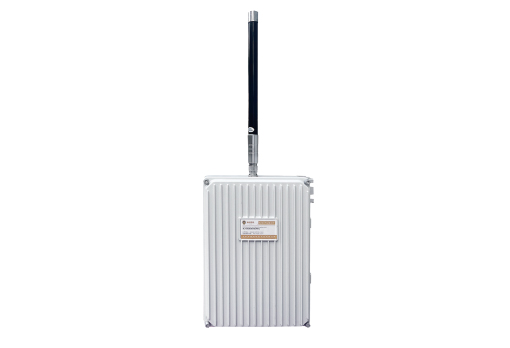

UAD-ZDN01

• Counter Drone Detect
• Utilizes advanced dual-frequency conversion and digital intermediate frequency technology, blending traditional analog and modern digital receiver strengths.
• Effectively counters a wide range of civilian drones, including popular international and domestic models, as well as custom-built drones such as racing drones.
• Highly sensitive detection capabilities: With a 6dBi antenna, it covers up to 80% of the drone’s transmission range; with a 3dBi antenna, it reaches over 60%.
• Features a professional RF limiter on the front end, ensuring safe operation near jamming devices without damage.
• Exceptionally low false alarm rates, even in challenging electromagnetic environments, outperforming spectral comparison-based systems.
• Energy-efficient: Maximum performance power consumption at just 5W, low-power mode at 2.5W, and standby mode as low as 0.2W.
• Designed for extreme environments, operating reliably in temperatures from -40°C to +80°C.
• Supports synchronized operation across multiple units for direction finding and can integrate with IFF systems for identifying friend or foe.

Advanced UAV Detection and Countermeasure System - SZMID UAD-ZDN01

The SZMID UAD-ZDN01 is a state-of-the-art UAV detection system designed for comprehensive drone identification and defense integration. This cutting-edge equipment leverages a unique combination of analog RF technology and modern digital signal processing, featuring a built-in RF analog front-end, secondary frequency receiver, high-speed A/D converter, and digital signal processor. The system is meticulously optimized to monitor the radio frequency bands commonly used by civilian drones, ensuring efficient detection and identification of a wide range of UAVs, from mainstream domestic and international models to DIY-assembled drones and high-speed racing drones.

Unlike traditional spectrum analyzers and SDR-based schemes, which are plagued by high false alarm rates, large size, and excessive power consumption, the UAD-ZDN01 stands out with its superior performance. It offers an exceptionally low false alarm rate, even in environments with complex electromagnetic interference, and is designed with a high level of integration and flexibility. The system's advanced design allows it to overcome the inherent limitations of older systems while maintaining a compact and lightweight form factor, weighing just 4.5kg.

The UAD-ZDN01's dual-frequency conversion and intermediate frequency (IF) digital processing technology provide the advantages of both traditional analog and modern digital receivers. The system's extreme sensitivity allows it to detect UAVs at distances exceeding 80% of their transmission range when using a 6dBi antenna, and over 60% with a 3dBi antenna. Equipped with a professional RF front-end limiter, the device is resistant to damage from nearby jammers, ensuring reliable performance in demanding conditions.

The UAD-ZDN01 is highly energy-efficient, consuming only 5W at peak performance, 2.5W in low-power mode, and a mere 0.2W in standby mode. It is engineered to operate in harsh environments, withstanding temperatures from -40°C to +80°C, making it ideal for industrial applications. Furthermore, the system can synchronize multiple units to work together with data processing units for direction finding, and its expansion interface allows integration with Identification Friend or Foe (IFF) systems for enhanced situational awareness.

With its compact size, low cost, and excellent performance, the SZMID UAD-ZDN01 is a highly cost-effective solution for UAV detection and defense systems, offering unmatched versatility and precision in civilian drone monitoring and countermeasure scenarios.

Model UAD-ZDN01
Detection Frequency 24002500MHz, 51505850MHz
Scanning Period 2.1~5.25 seconds, adjustable
Detection Distance 1.5km (2dBi antenna/DJI Phantom 4 Pro V2.0/50m height)
3km (8dBi antenna/DJI Phantom 4 Pro V2.0/100m height)
False Alarm Rate ≤1 time/24 hours in complex urban electromagnetic environments
Alarm Delay 1.5 seconds delay on all frequency bands
Power Supply Voltage AC220V (optional)
Power Consumption <5W
Operating Temperature -40 ~ +55℃ (environment) / -40 ~ +85℃ (casing)
Dimensions 700*225-110
Weight 4.5KG
Product Colors Black, silver, and other colors (customizable)

Documents

  • SZMID - UAD-ZDN01 Drone RF Detection
