UAD-ZDY05

• Omnidirectional Detection Sensor
• Versatile Installation: Suitable for fixed or vehicle-mounted setups, enabling long-distance control to keep drones at a safe distance.
• Grid-Based Detection: Uses distributed drone detection with grid-based positioning algorithms for enhanced defense capabilities at a low cost.
• Compact and Lightweight: Easy to install and operate, with a lightweight design weighing just 1.1kg.
• High Detection Accuracy: Detects up to 96% of mainstream drones, with a low false alarm rate.
• Power Efficient: Low-power design with strong adaptability to various power supplies, ensuring long-term, stable operation.
• Electromagnetic Compatibility: No electromagnetic radiation, offering reliable performance in a wide range of environments.

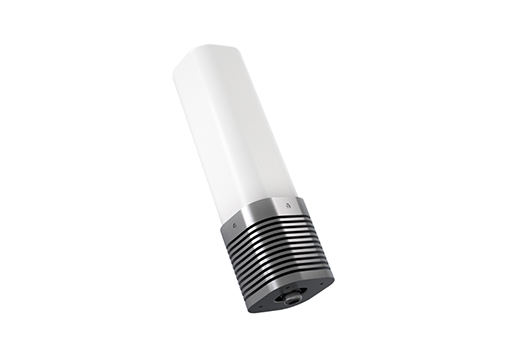

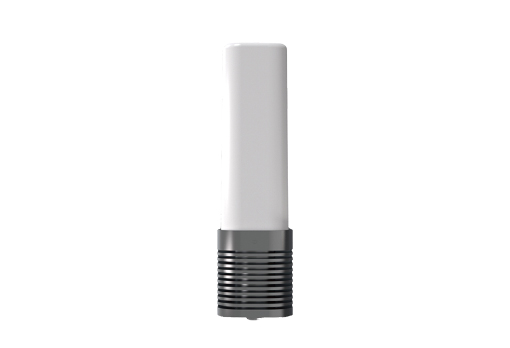

SZMID UAD-ZDY05: Lightweight and Cost-Effective Omnidirectional Drone Detection Sensor

The SZMID UAD-ZDY05 is an advanced omnidirectional detection sensor designed for efficient and distributed drone detection. Ideal for fixed or vehicle-mounted installations, this device offers ultra-long-range control to keep drones at bay from a significant distance. Its compact, lightweight design, weighing just 1.1kg, makes it easy to install and operate, providing users with a flexible and versatile detection solution.

With a focus on cost-effectiveness and low power consumption, the UAD-ZDY05 allows users to deploy more units within the same budget. Through grid-based positioning algorithms and cross-coverage, the system delivers precise, distributed drone detection and positioning across larger areas. This makes it particularly well-suited for organizations seeking a scalable defense system for drone intrusions.

Capable of detecting 96% of mainstream drones, the UAD-ZDY05 boasts a low false alarm rate, ensuring reliable performance in various environments. Its strong power supply adaptability and excellent electromagnetic compatibility ensure stable, long-term operation without generating electromagnetic radiation. By integrating the UAD-ZDY05 with drone countermeasure or decoy systems, users can build a robust defense network to protect sensitive areas from unauthorized UAV activity.

Model UAD-ZDY05
Operating Mode Radio Detection
Operating Frequency 2.4GHz / 5.8GHz
Decoding Types FM, WiFi, OFDM
Operational Radius 2km
Effective Angle 360° (horizontal), ±60° (pitch)
Alarm Method Remote/cloud platform
Communication Mode RS422/RS485 or LAN
Power Supply POE DC15~60V 4W (max)
Main Unit Size Length 60mm × Width 60mm × Height 260mm

Documents

  • SZMID - UAD-ZDY05 Drone RF Detection
