DZ01-Pro

• 3-channel Drone jamming Gun
• The device emits high-power interference signals of the same frequency band to suppress drone control signals, with a jamming distance of up to 1200 meters.
• It uses high-gain directional antennas for more precise targeting.

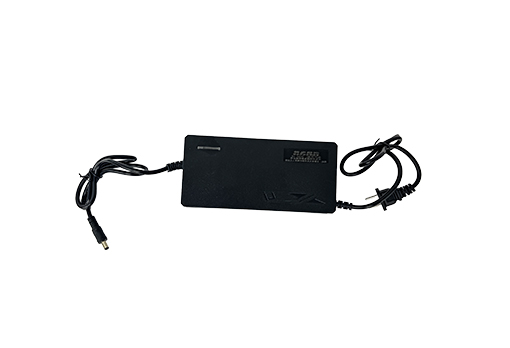

• Equipped with a high-capacity battery, for extended operational time.
• Designed for quick outdoor deployment and can be easily operated by a single person.
• Can be flexibly deployed in all areas that require drone intrusion prevention.
• It can interfere with most commonly used drone signal frequencies.
• It quickly captures drone signals demonstrating strong environmental adaptability, functioning effectively in diverse conditions.

DZ01-Pro Three-Channel Drone Jamming Gun: Portable UAV Countermeasure for Low-Altitude Security

The DZ01-Pro Three-Channel Drone Jamming Gun is designed for rapid deployment and ease of operation by a single person, making it ideal for outdoor drone countermeasures. It effectively controls low-altitude multi-rotor UAVs by isolating their connection with remote controllers, forcing the drones to hover, land, or return, ensuring the safety of low-altitude airspace. By transmitting high-power interference signals across three key frequency bands (1.5GHz, 2.4GHz, 5.8GHz), the DZ01-Pro disrupts the UAV's control signals, data link, and positioning system. Liking GNSS/GPS jammer through frequency interference blocking, the UAV flight control system, GPS, GNSS system and data transmission system are interfered with, and the communication between the UAV and the operator is blocked, forcing the UAV to either hover, land smoothly, or return automatically.

With a high-gain directional antenna, the DZ01-Pro concentrates energy for precise targeting, achieving an interference distance of up to 1200 meters. Its high-capacity battery supports extended operation, making it perfect for quick deployment in various terrains. The portable design offers high mobility and flexibility, allowing the device to be deployed anywhere drone intrusion prevention is required. The DZ01-Pro can interfere with most commonly used drone signal frequencies, ensuring broad coverage and effective Anti-drone suppression.

Model DZ01-Pro
Device Weight Approx. 4KG (including battery)
Device Dimensions (excluding scope) Length 620mm * Width 160mm * Height 60mm

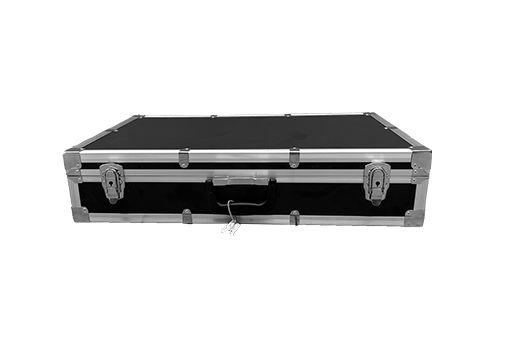

Aviation Case Dimensions Length 660mm * Width 400mm * Height 125mm
Aviation Case Weight (including device) Approx. 8.5KG
Antenna Type Directional
Antenna Gain 9dB
Antenna Angle 60 degrees
Power Supply 24v5Ah
Operating Time 35 minutes ~ 40 minutes
Single Channel Power 20W
Operating Temperature -20℃~+55℃
Relative Humidity 80%RH

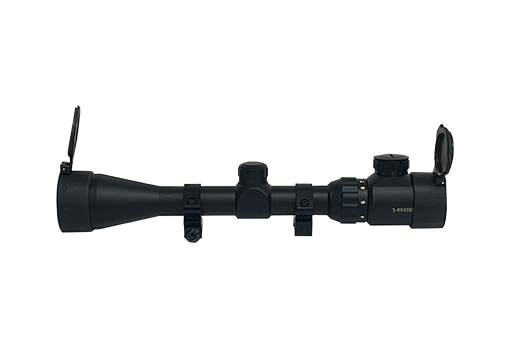

Expansion Function Equipped with standard rail, can install scope, night vision device, law enforcement recorder, etc.
Jamming Distance Open area ≥1500 meters (depending on model/environment)
Channel Frequencies And Powers
Jamming Frequency/Power Jamming Frequency Channel Power
5.8GHz 20W
2.4GHz 30W
1.5GHz 10W
